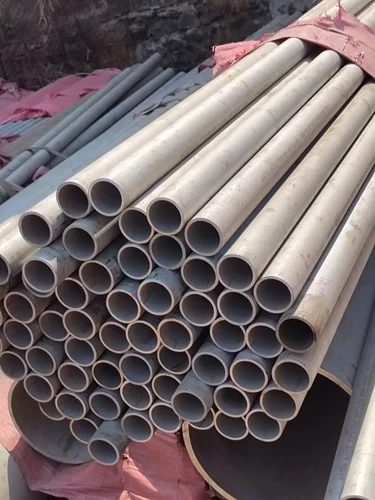

ASTM A312 TP 316 Stainless Steel Electropolished Pipes

ASTM A312 TP 316 Stainless Steel Electropolished Pipes

ASTM A312 TP 316 Stainless Steel Electropolished Pipes are premium austenitic stainless steel pipes enhanced with molybdenum for superior resistance to pitting, crevice corrosion, and chloride attack. The electropolishing process produces an ultra-smooth, bright, and contamination-free surface finish, significantly improving hygiene and corrosion resistance.

Grade 316 offers excellent strength and durability in aggressive chemical and marine environments. The enhanced chromium-rich passive layer formed during electropolishing ensures long-term performance in pharmaceutical, biotechnology, food processing, and high-purity fluid handling systems.

Specifications

Standard	ASTM A312 / ASME SA312
Grade	TP 316
Type	Seamless / Welded & Electropolished
Size Range	1/8" NB to 24" NB
Wall Thickness	Schedule 5S to Schedule 80S
Surface Roughness	Ra ≤ 0.4 µm (or as per customer requirement)
Length	6 Meters Standard / Custom Length
End Type	Plain End, Beveled End

Key Features

• Molybdenum Alloyed: Superior resistance to chlorides and harsh chemicals.
• Electropolished Finish: Ultra-smooth surface for critical hygienic applications.
• Enhanced Passive Layer: Improved corrosion protection and longevity.
• High Purity Standards: Suitable for cleanroom and sterile systems.
• Excellent Mechanical Strength: Reliable under varying pressure and temperature.

Chemical Composition (Typical)

Element	TP 316 (%)
Carbon	0.08 Max
Chromium	16.0 – 18.0
Nickel	10.0 – 14.0
Molybdenum	2.0 – 3.0
Manganese	2.00 Max

Applications

• Pharmaceutical & Biotechnology Plants
• Food & Beverage Processing
• Chemical Processing Systems
• Marine & Coastal Installations
• High-Purity Water & Clean Utility Systems

Quality Testing

• Hydrostatic Testing
• Ultrasonic Testing (UT)
• Surface Roughness (Ra) Measurement
• Positive Material Identification (PMI)
• Dimensional Inspection

Conclusion

ASTM A312 TP 316 Stainless Steel Electropolished Pipes combine molybdenum-enhanced corrosion resistance with a superior electropolished finish, delivering exceptional cleanliness, durability, and long-term reliability for demanding industrial and high-purity applications.
